DEK 133606 400mm 45° Replacement Metal Squeegee Blade

DEK 133606 is a 400mm 45° laser-cut replacement metal squeegee blade designed for compatible DEK SMT stencil printers. It is intended for installation in the DEK SQA355 metal clamped squeegee holder assembly.

This replacement blade allows the worn working element to be renewed while retaining the compatible holder. Its 45° configuration differs from the 400mm 60° DEK 133586 blade, so the angle, dimensions and mounting-hole pattern should be checked before ordering.

Product Information

• Brand: DEK / ASMPT
• Part Number: 133606
• OEM Reference: 03169341-01
• Product Type: Laser-Cut Replacement Metal Squeegee Blade
• Blade Length: 400mm
• Blade Angle: 45°

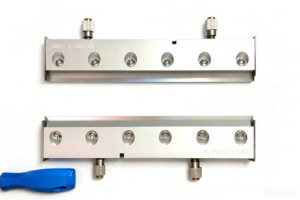

• Compatible Holder: DEK SQA355
• Application: SMT solder paste printing

45° Blade Configuration

DEK 133606 is intended for an established 45° printing configuration. It should not be substituted with a 60° blade solely because both products have the same working length.

Compatibility

DEK 133606 is commonly paired with the SQA355 400mm metal clamped squeegee assembly. Please compare the part number, OEM reference, angle, dimensions and mounting holes with the original blade before ordering.
