Nordson ASYMTEK DV-7000 Heli-Flow Encoded Auger Dispensing Pump

Nordson ASYMTEK DV-7000 Heli-Flow Dispensing Pump

The Nordson ASYMTEK DV-7000 Heli-Flow pump is an encoded auger
dispensing pump with a floating-head design. It is engineered for
fast, repeatable dispensing of small and precise fluid dots in
electronics manufacturing and semiconductor assembly applications.

The DV-7000 supports interchangeable cartridge configurations,
including luer-lock and footed-needle designs. Its hardened auger is
suitable for compatible filled epoxy materials, while the
quick-release cartridge mechanism simplifies cleaning and fluid
changeover.

Key Features

• Encoded auger pump with closed-loop feedback
• Floating-head design for repeatable small-dot dispensing
• Luer-lock and footed-needle cartridge options
• Hardened auger for compatible filled materials
• Tool-free removal of wetted cartridge components
• Quick cartridge changeover for easier maintenance
• Compatible cartridges available for different fluid applications

Compatible Fluids

• Solder paste
• Silver epoxy
• Conductive adhesive
• Surface-mount adhesive
• Other compatible filled dispensing materials

Typical Applications

• Small-dot surface-mount adhesive dispensing
• Solder paste dispensing
• Silver epoxy dispensing
• Dam writing and area fill
• Glob top and encapsulation
• Lid sealing and micro-potting
• MEMS, MOEMS and electronic component assembly

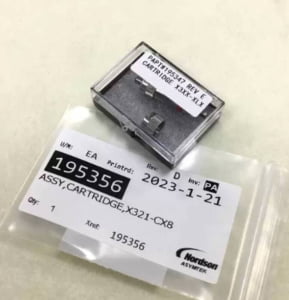

Cartridge Compatibility

DV-7000 cartridges are available in different screw, clearance and
needle configurations. Some cartridges are interchangeable with
DV-8000 and DV-8000C Heli-Flow pumps; however, footed cartridges are
intended specifically for the DV-7000 platform.

Configuration Notice

The pump body, motor, cartridge, screw assembly, needle and cables may
be supplied separately or as part of a complete assembly. Please
review the product photographs and confirm the package contents before
ordering.

Compatibility depends on the dispensing system, pump configuration,
cartridge model, fluid type and required dot size. Please send us the
original pump label, cartridge code and machine model so that we can
check the correct configuration.

Request a Quotation

Contact us for the current condition, test status, package contents,
price, stock availability, lead time and international shipping
options for the Nordson ASYMTEK DV-7000 Heli-Flow pump.
